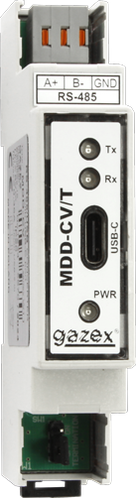

Digital signal converter MDD-CV/T
New
Digital signal converter allows to connect any PC/laptop to the RS-485 port of the MDD-256/T type supervisory control module
The MDD-CV/T digital signal converter makes it possible to connect any PC/laptop (running Windows) to the RS-485 port of the MDD-256/T supervisory module, which is a component of the Digital Gas Detection System.
Using the MDD256 View software running on a computer, it is possible to view the operation of the supervisory module and control selected functions of the MDD-256/T.
Through the DETnet View software, with the supervisory module disconnected from the digital bus, it is possible to set the parameters of individual detectors and devices connected to the digital bus.
The converter requires the MDD-CV/T virtual COM port driver to be installed
Features
- power supply via USB type C port from PC/laptop;
- communication, control and transmission of information between system components in RS-485 standard (MODBUS RTU protocol);
- RS-485 port terminals removable, screwless, double, recommended use of wires with 0.5 mm2 single conductors;
- easy mounting on TS35 rail in standard electrical switchboards
