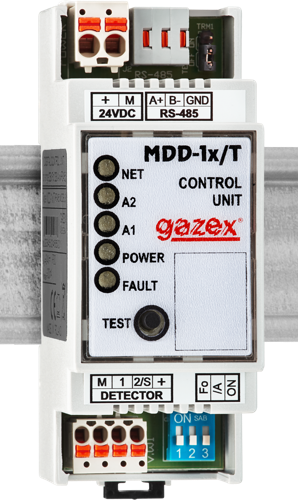

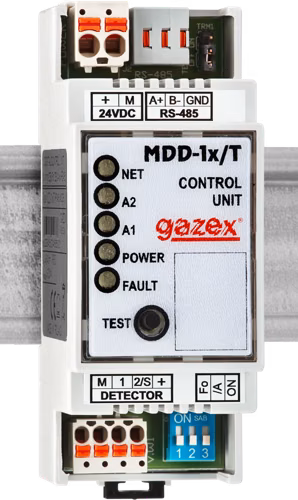

Addressable control units MDD-1x/T
Addressable executive units and power supply for one DEX/F, DG/F, DG.EN or DEX/A detector, TS35 rail mounting
The MDD-1x/T digital executive units are part of the Digital Gas Detection System (DGDS). They allow to control a single threshold detector produced by GAZEX and connect it to the DGDS.
MDD-1x/T are devices dedicated to work with MDD-256/T type supervisory control unit. Communication is carried out in industrial standard RS-485.
Features
- power supply and control of one DEX/F, DG/F, DG.EN or DEX/A detector;
- detector’s power supply can be switched off (via the function switch);
- communication, control and information transfer between system components in RS-485 standard (MODBUS RTU protocol);
- removable, screwless terminals, possibility of using wires with single or multi-strand wires (without crimping sleeves) – quick installation, easy maintenance;
- power supply 24VDC;
- mounting on TS35 rail in standard electrical switchgears;
- configuration of unit settings via dedicated configuration software „DETnet View”, available at https://www.gazex.pl/en/software/.
Offered models
| Model | Maximum number of detectors | Emergency power backup | Supply voltage | Net price | C.g. | |
|---|---|---|---|---|---|---|
| MDD-1x/T |
|
1 | 24VDC | PLN99.00 | C | |
| Model | Maximum number of detectors | Alarm control outputs 12VDC | Contact control outputs | Emergency control output | Output controlling the shut-off valve | Alarm inputs | Analogue 4-20mA output | Analogue 2-10V output | Digital RS-485 output | Mounting on a TS35 rail | Emergency power backup | Supply voltage | Dimensions | Net price | C.g. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MDD-1x/T |
|
1 | — | — | — | 24VDC | 35 x 90 x 65 mm | PLN99.00 | C | |||||||
