TP-4/H1 New

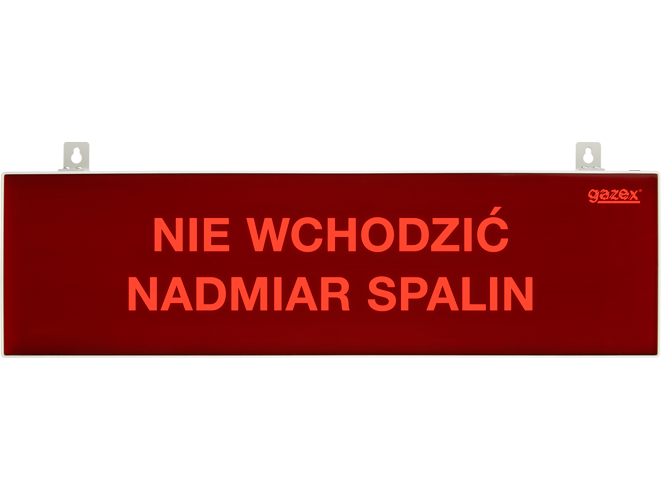

Single- or double-sided illuminated LED warning boards of type TP-4 are designed for visual presentation of alarm conditions appearing on control outputs of detectors WG.EG, WG.EG.x, WG.NG or control modules.

They have a fixed warning or information inscription (standard content or according to the customer’s request) appearing only when illuminated (in the active state). It is possible to connect with a silent or loud sounder (operating in the active state).

The boards have an ordinary construction _ they can not be used in spaces defined as explosion hazard zones for gases, vapors or dust. They are intended for use inside buildings.

Features

• modern visual form, legible lettering (standard letter height 35mm);
• illegible inscription without backlighting, reveals itself after switching on the power;
• pulsating backlight, red color – drawing the attention of the observer;
• light source: high-performance LEDs – high durability and reliability;
• very low power consumption;
• TP-4.A – power supply for the board universal 12/24 V=; connection cable about 1.35 m;
• TP-4 – two-part construction: board TP-4.A + TPZ-4 12 V= power supply (in the
  junction box with flexible flat grommets);
• possibility to connect/disconnect acoustic signaling;
• TP-4.s2, TP-4.ds2 – possibility of connecting silent/loud acoustic signaling;
• wall-mounted (single-sided board) or suspended (double-sided board);
• models /H0 – free-form inscription, according to specifications: 2 rows of inscription, 20 characters max. per row.
