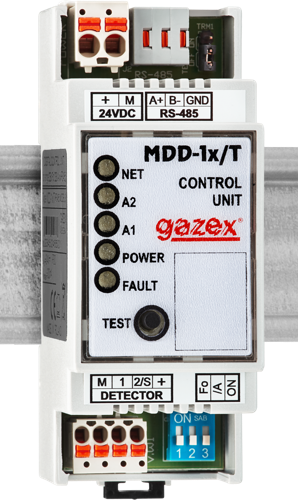

MDD-1x/T
Device type: MDD-1x/T Description of device type
The MDD-1x/T digital executive units are part of the Digital Gas Detection System (DGDS). They allow to control a single threshold detector produced by GAZEX and connect it to the DGDS.
MDD-1x/T are devices dedicated to work with MDD-256/T type supervisory control unit. Communication is carried out in industrial standard RS-485.
Features
- power supply and control of one DEX/F, DG/F, DG.EN or DEX/A detector;
- detector’s power supply can be switched off (via the function switch);
- communication, control and information transfer between system components in RS-485 standard (MODBUS RTU protocol);
- removable, screwless terminals, possibility of using wires with single or multi-strand wires (without crimping sleeves) – quick installation, easy maintenance;
- power supply 24VDC;
- mounting on TS35 rail in standard electrical switchgears;
- configuration of unit settings via dedicated configuration software „DETnet View”, available at https://www.gazex.pl/en/software/.
Device model: MDD-1x/T
Technical parameters
- Maximum number of detectors
- 1
- Digital RS-485 output
- Mounting on a TS35 rail
- Supply voltage
- 24VDC
- Dimensions
- 35 x 90 x 65 mm
- EAN Code
- 5901769651401
- Net price
- PLN99.00 C
Documentation
| Series | Technical data | Device information sheet | User Manual | Declaration of conformity |
|---|---|---|---|---|
| W3 | — | — | — | — |
| Archived series | ||||
| W2 | — | — | — | — |
| W1 | — | — | — | — |
